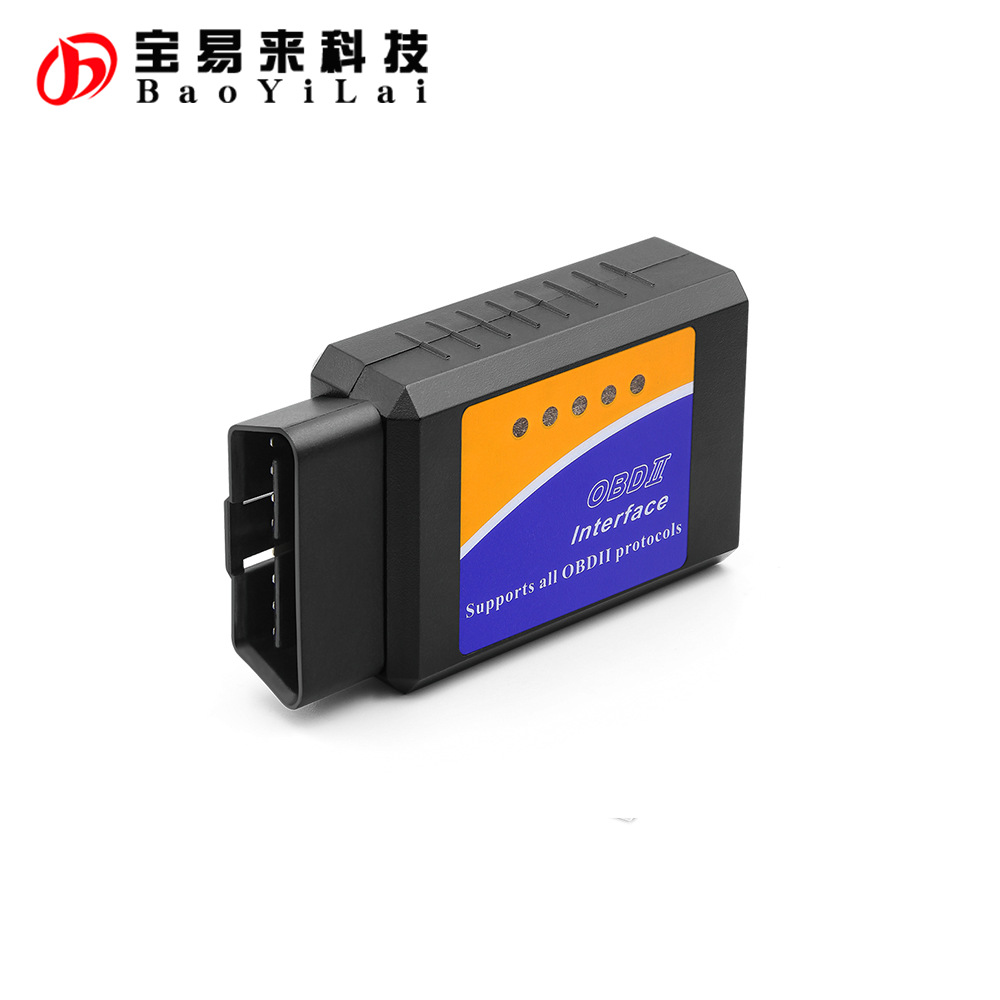

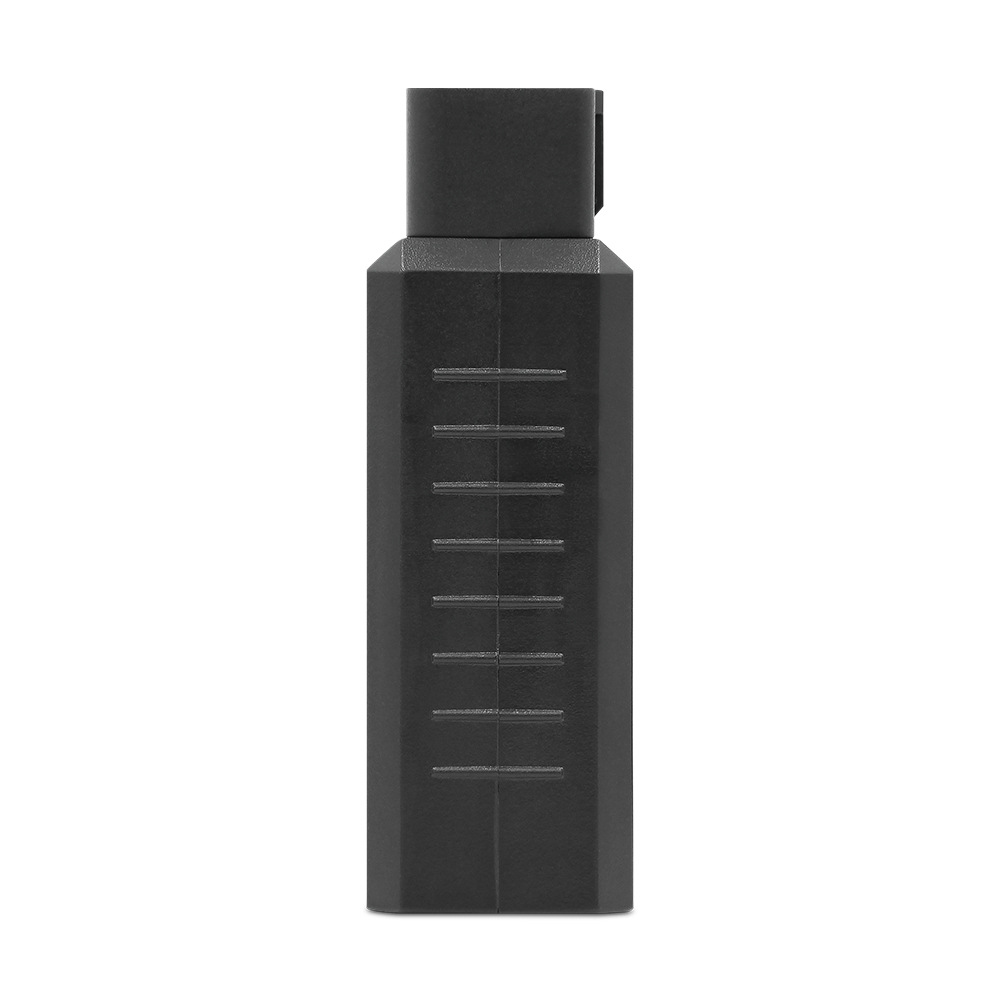

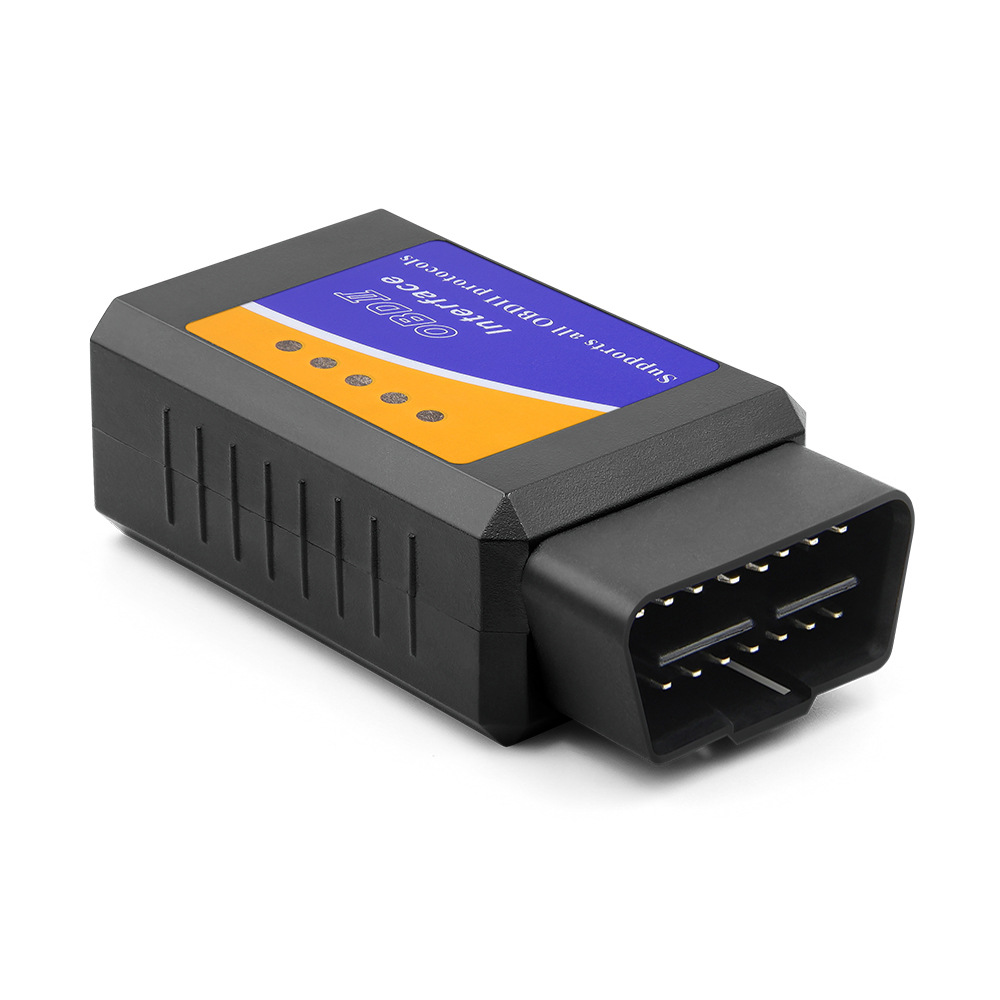

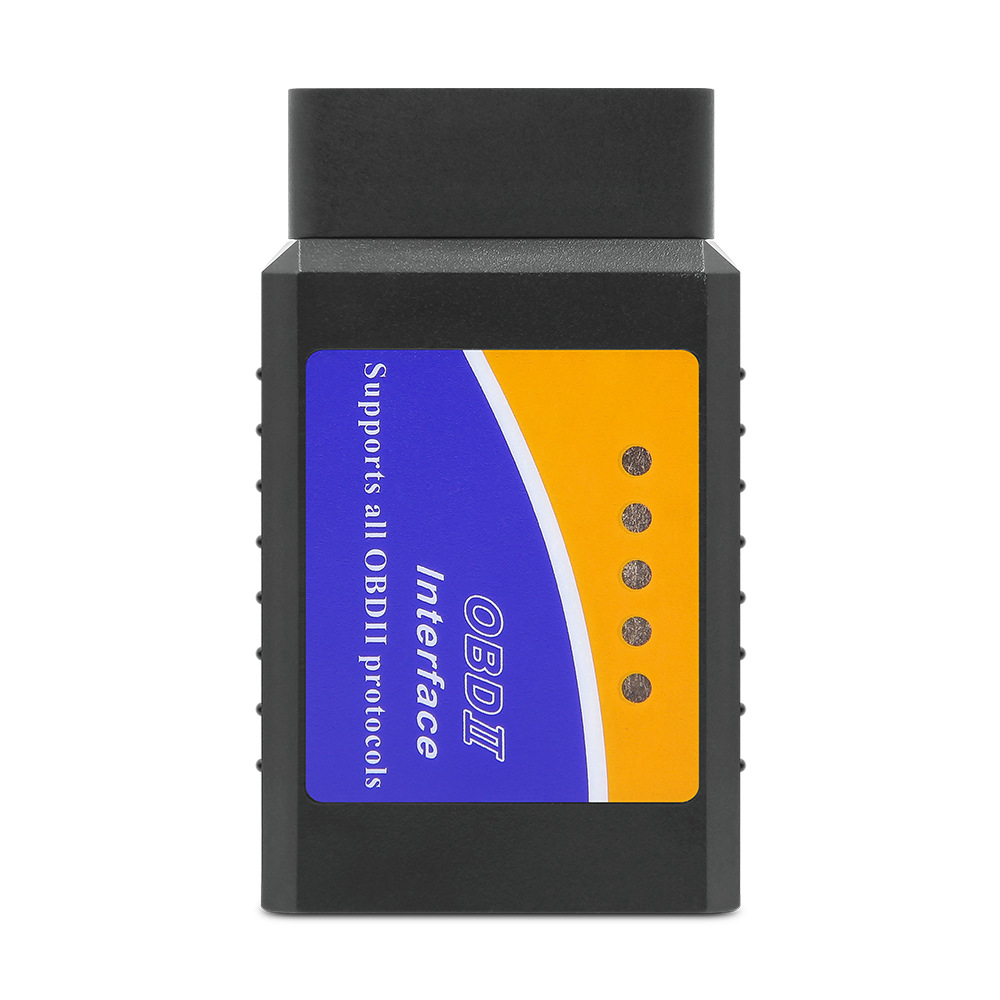

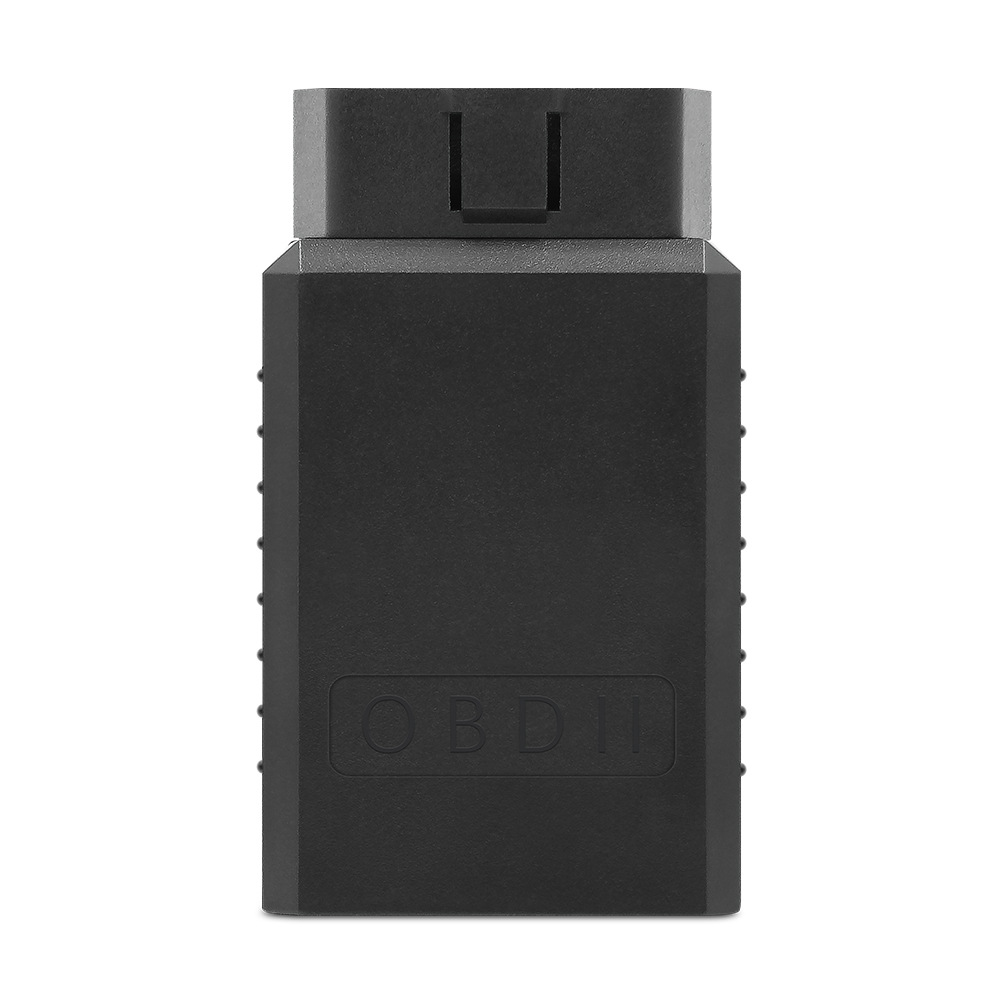

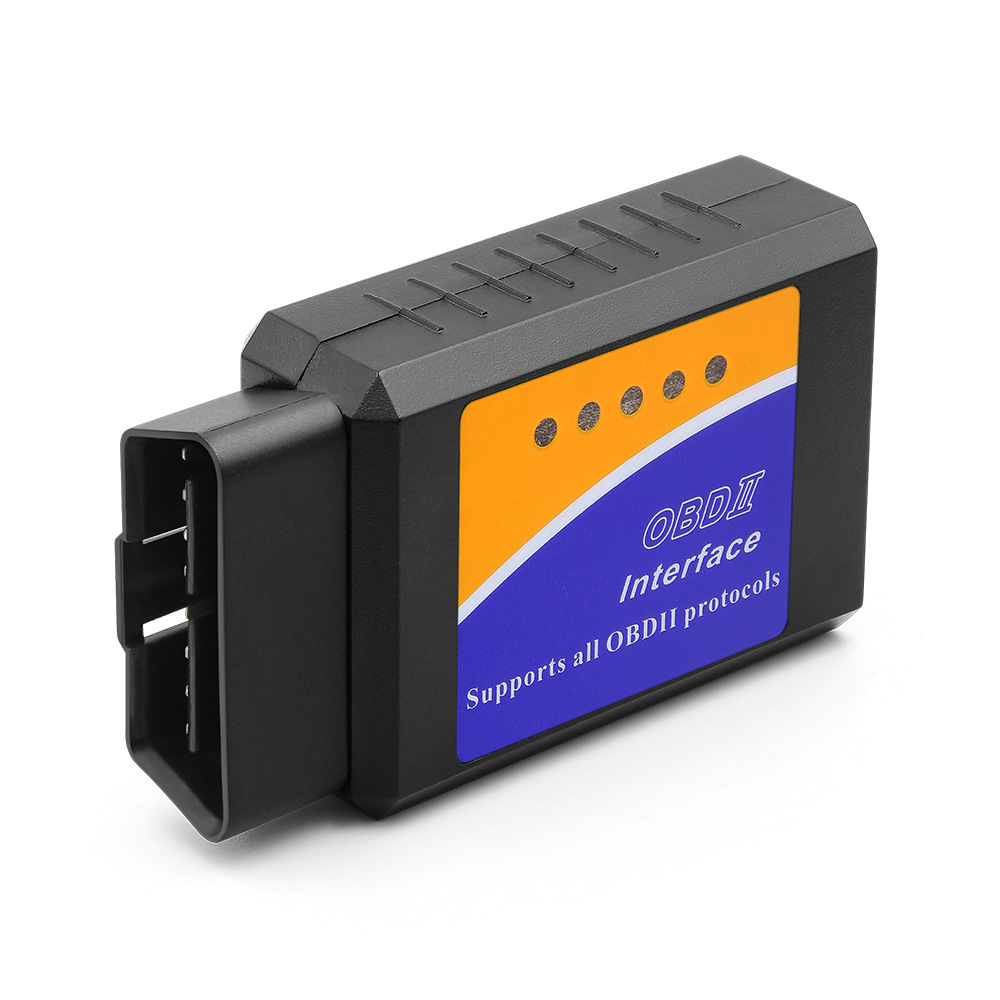

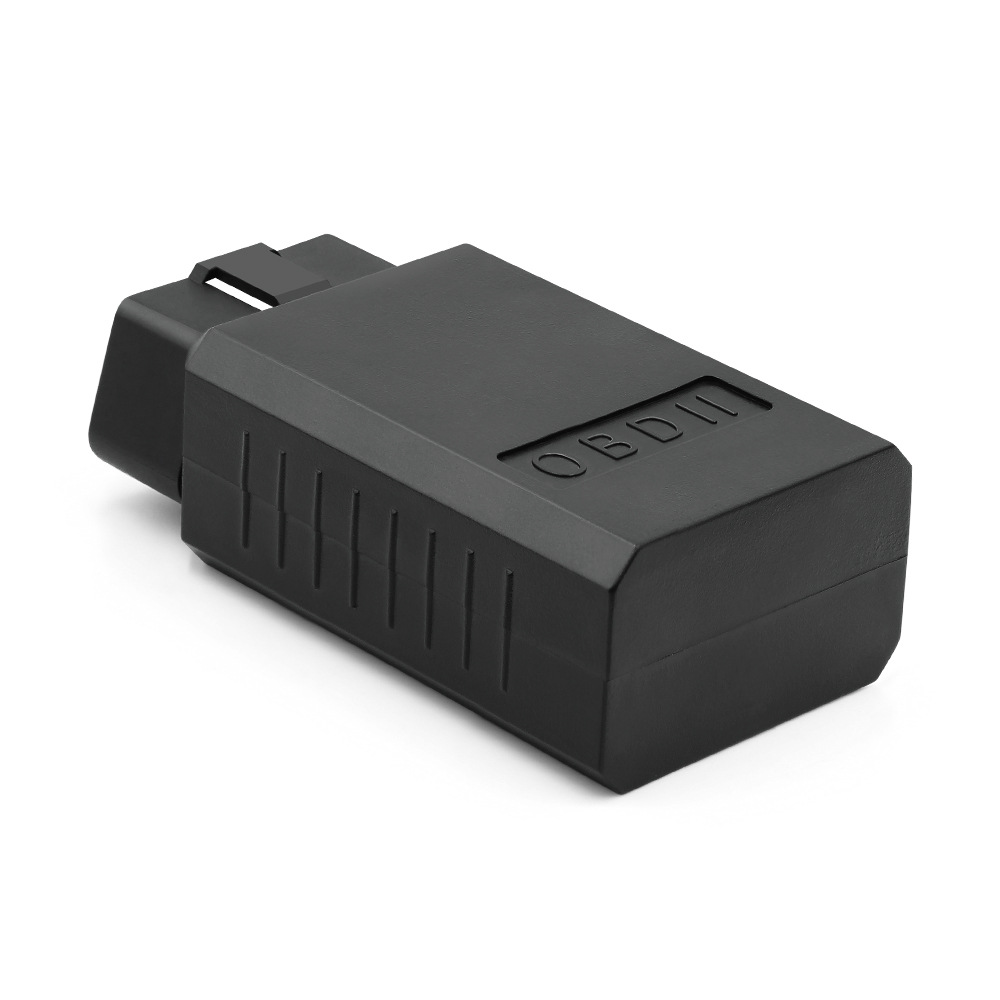

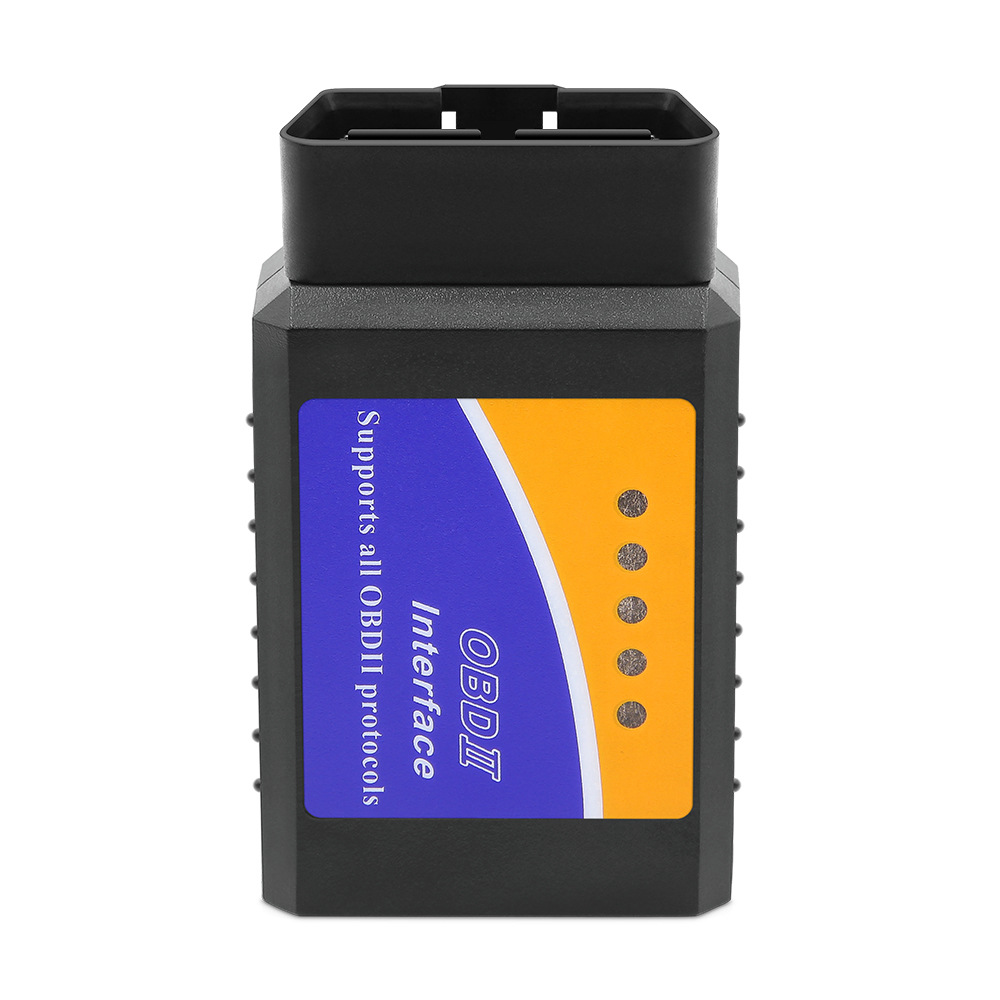

Android Bluetooth Car OBD2 25K80 Bluetooth Scanner Automotive Diagnostic Tool

Android Bluetooth Car OBD2 25K80 Bluetooth Scanner Automotive Diagnostic Tool

$5.74per piece
Payable from 100 pieces or ⁦$1,000⁩ of goods
Delivery to Algeria priced at checkout1 piece
Buying with soorce
Office in AlgiersA team on the ground for your questions and order follow-up.
Inspection on requestYour items checked in our warehouse before they ship.
Goods paid when you orderShipping is billed afterwards, on the parcel's real weight.
Tracked to your doorEvery step visible in your orders.
Questions? Contact us

11*7*3cm 0.05Kg

Mini OBD2 Bluetooth Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth. Supports All OBD2 Protocol works on Android Symbian, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).



Mini OBD2 Bluetooth Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth.



Top 4 Reasons To Get Mini OBD2 Bluetooth Scanner:

1. Software Version: V2.1 (depending on software)

2. Hardware Version: V1.5

3. Works with all OBD-II compliant vehicles

4. Wireless (Bluetooth)





Supported protocols:

1.SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW (10.4Kbaud)

3.ISO9141-2 (5 baud init, 10.4 Kbaud)

4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (11bit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

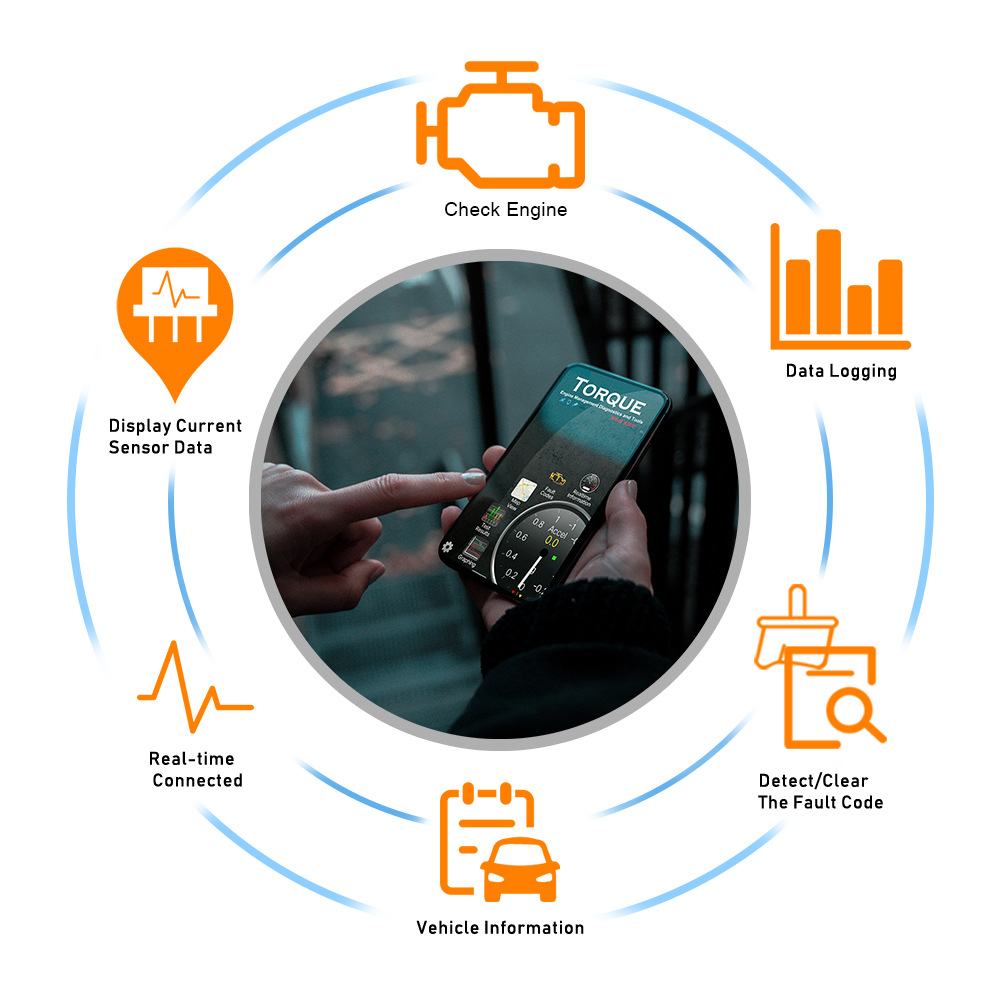

Mini OBD2 Bluetooth Scanner Functions:



1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2: Clear trouble codes and turn off the MIL ("Check Engine" light)

3: Display current sensor data, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuel System Status

8: Vehicle Speed

9: Short Term Fuel Trim

10: Long Term Fuel Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature

14: Air Flow Rate

15: Absolute Throttle Position

16: Oxygen sensor voltages / associated short term fuel trims

17: Fuel System status

18: Fuel Pressure

19: Many others

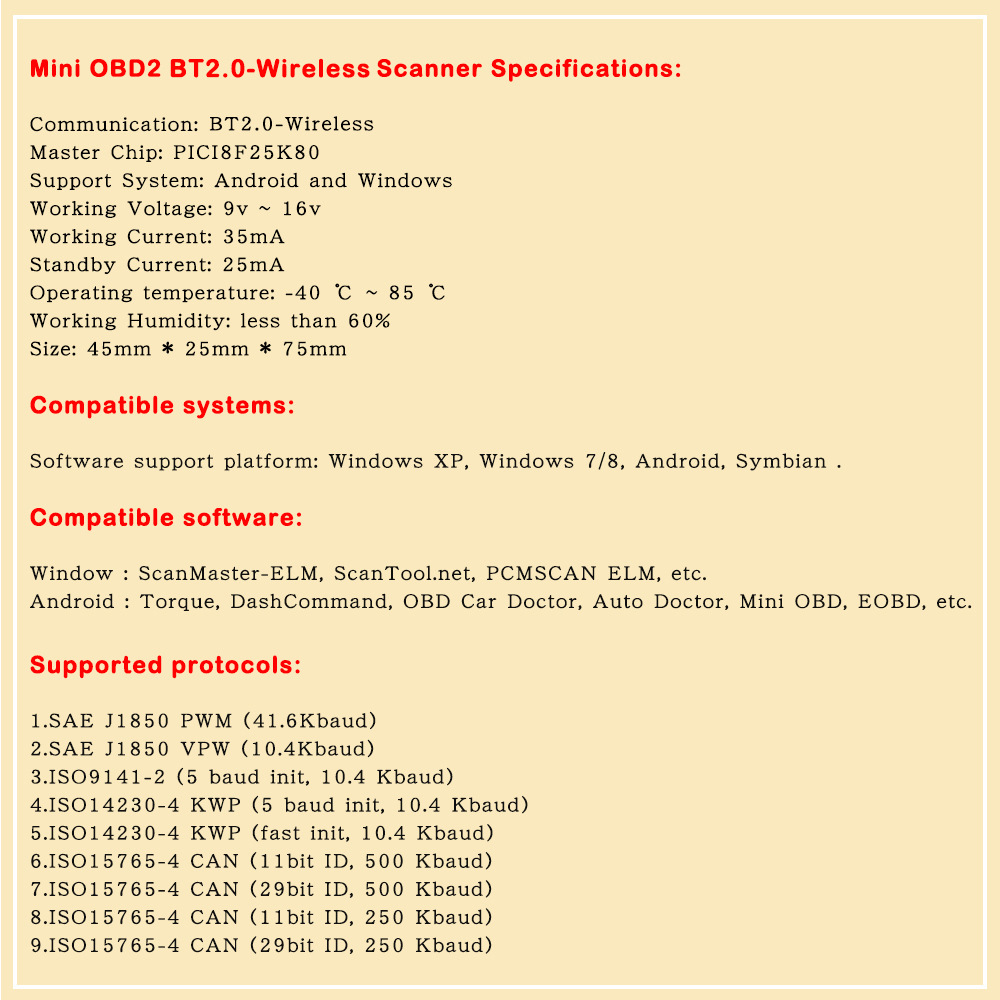

Mini OBD2 Bluetooth Scanner Specifications:

Communication: Bluetooth 2.0

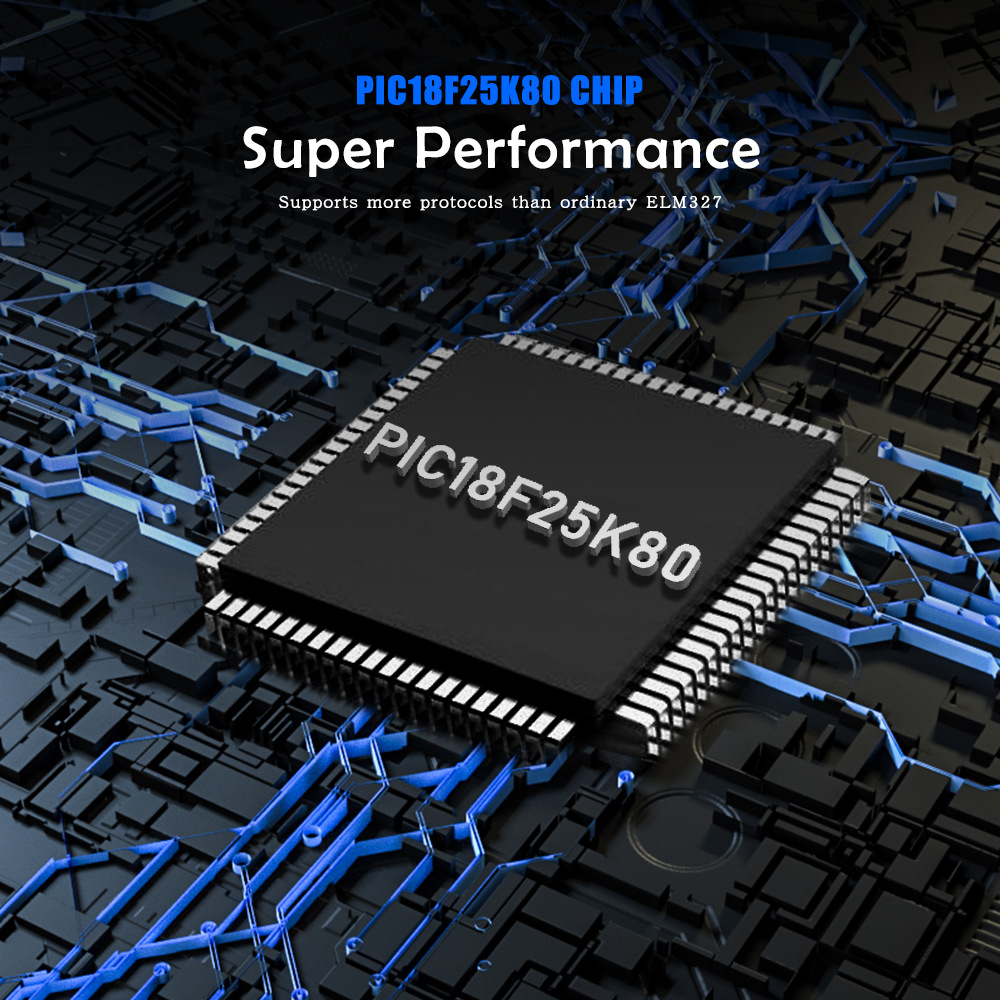

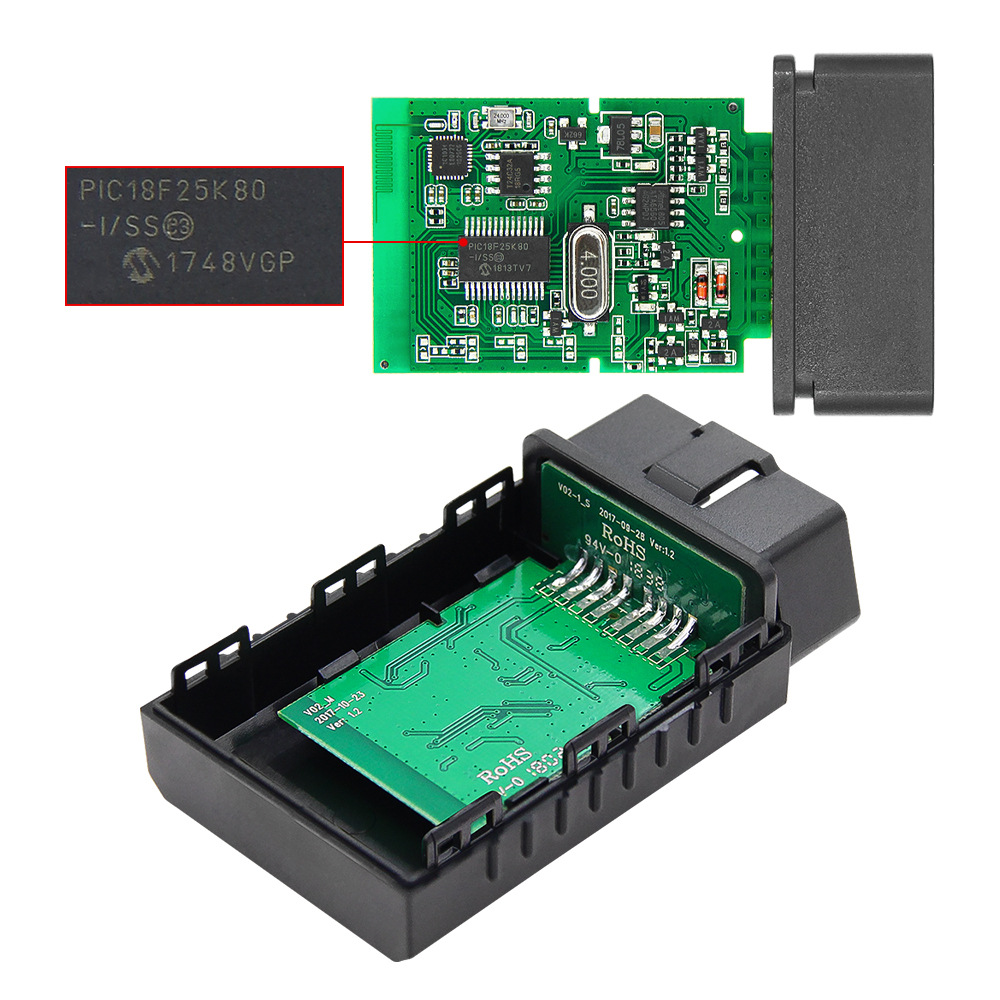

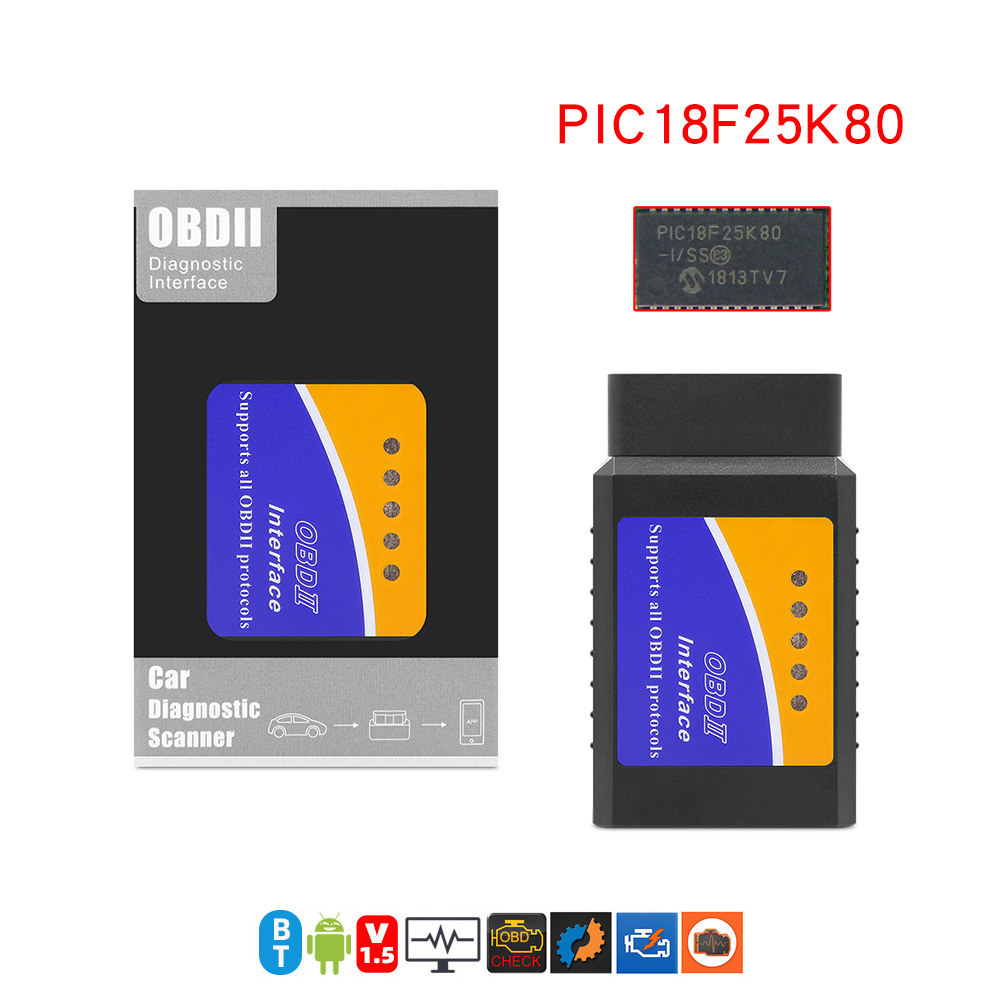

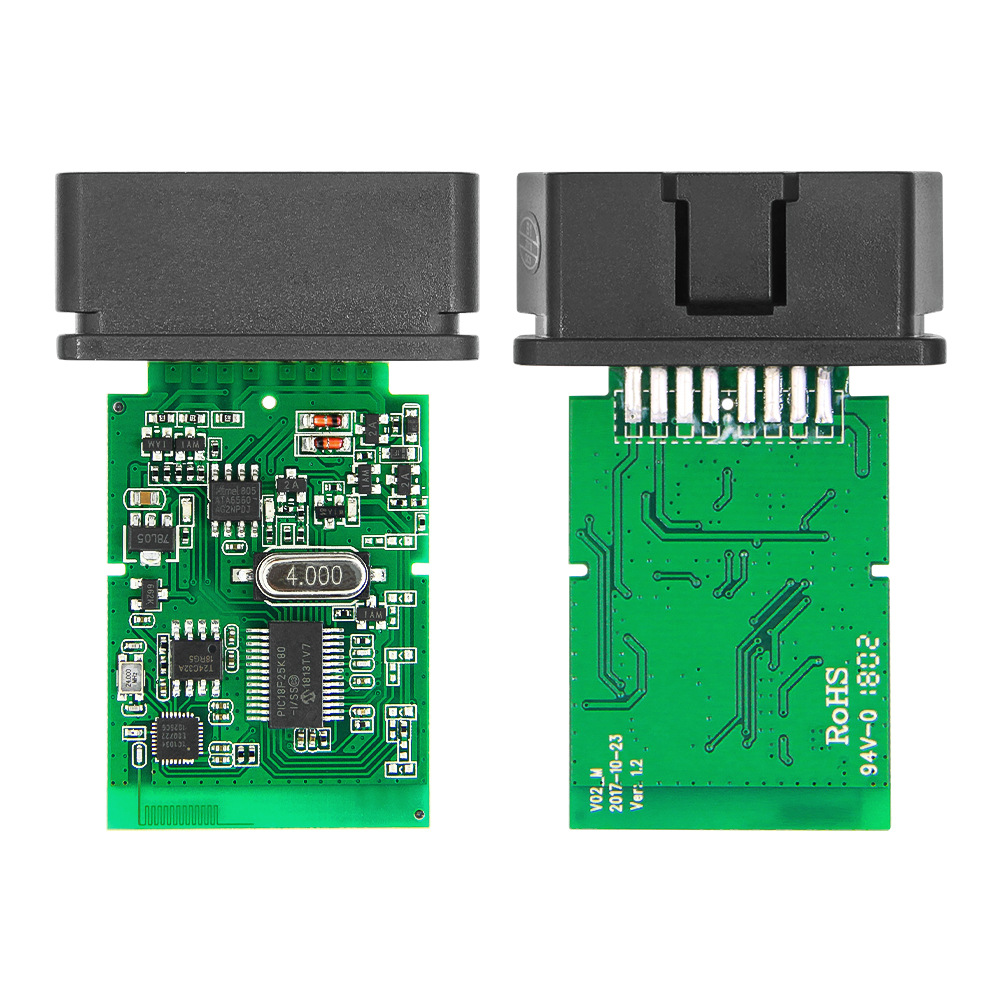

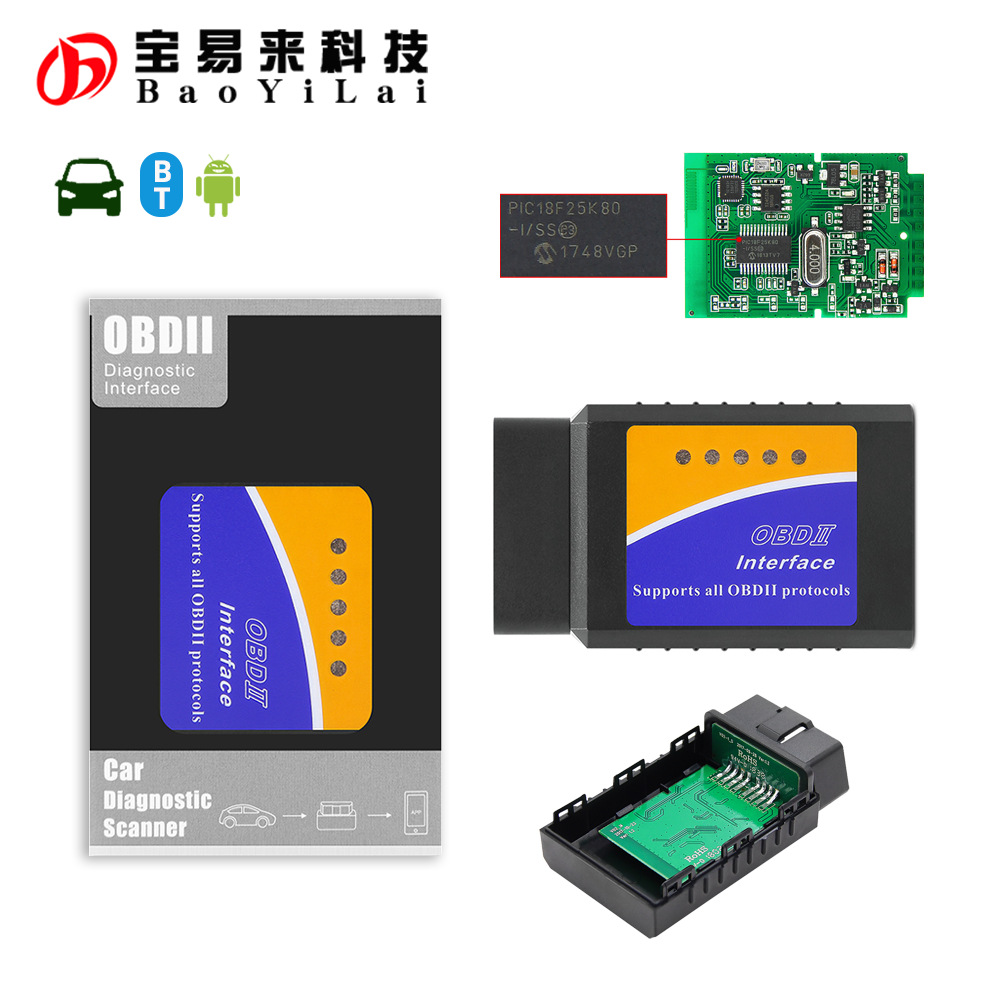

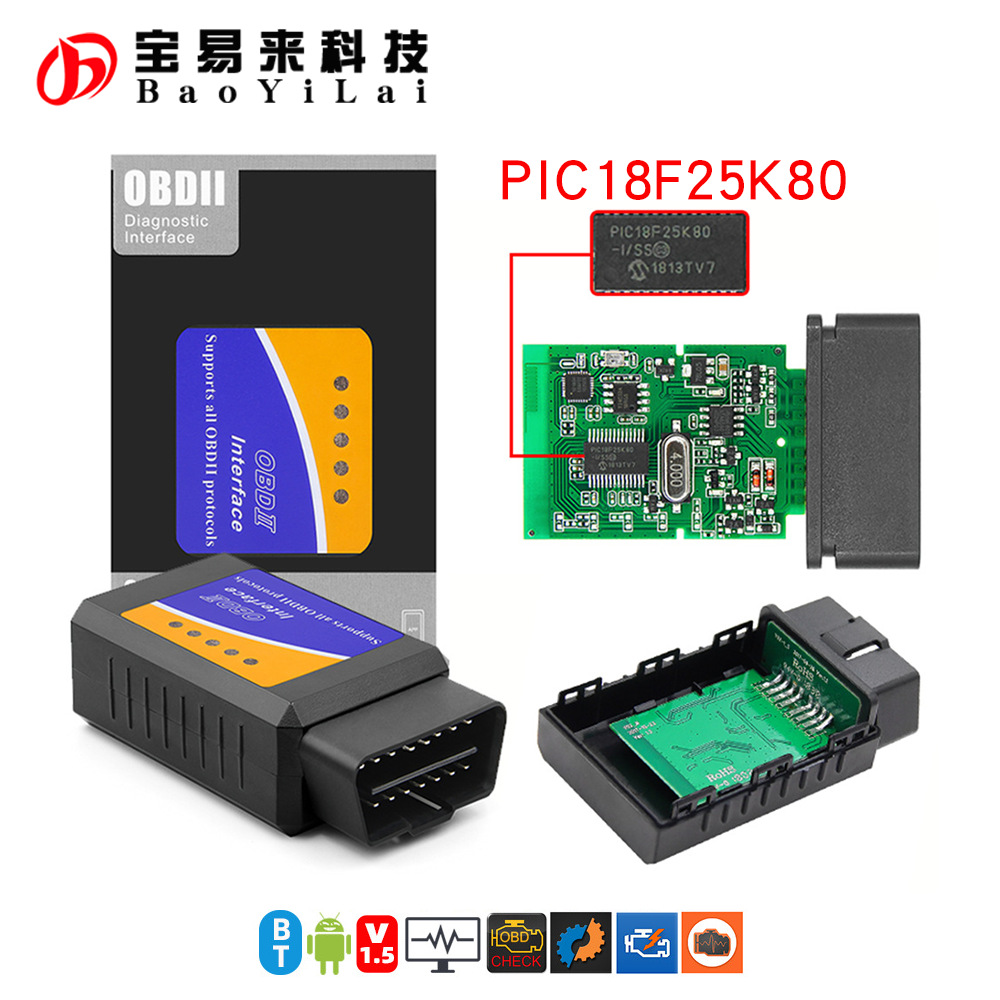

Master Chip: PICI8F25K80

Support System: Android and Windows

Working Voltage: 9v ~ 16v

Working Current: 35mA

Standby Current: 25mA

Operating temperature: -40 ℃ ~ 85 ℃

Working Humidity: less than 60%

Size: 45mm * 25mm * 75mm



Compatible systems:

Software support platform: Windows XP, Windows 7/8, Android, Symbian .



Compatible software:

Window : ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

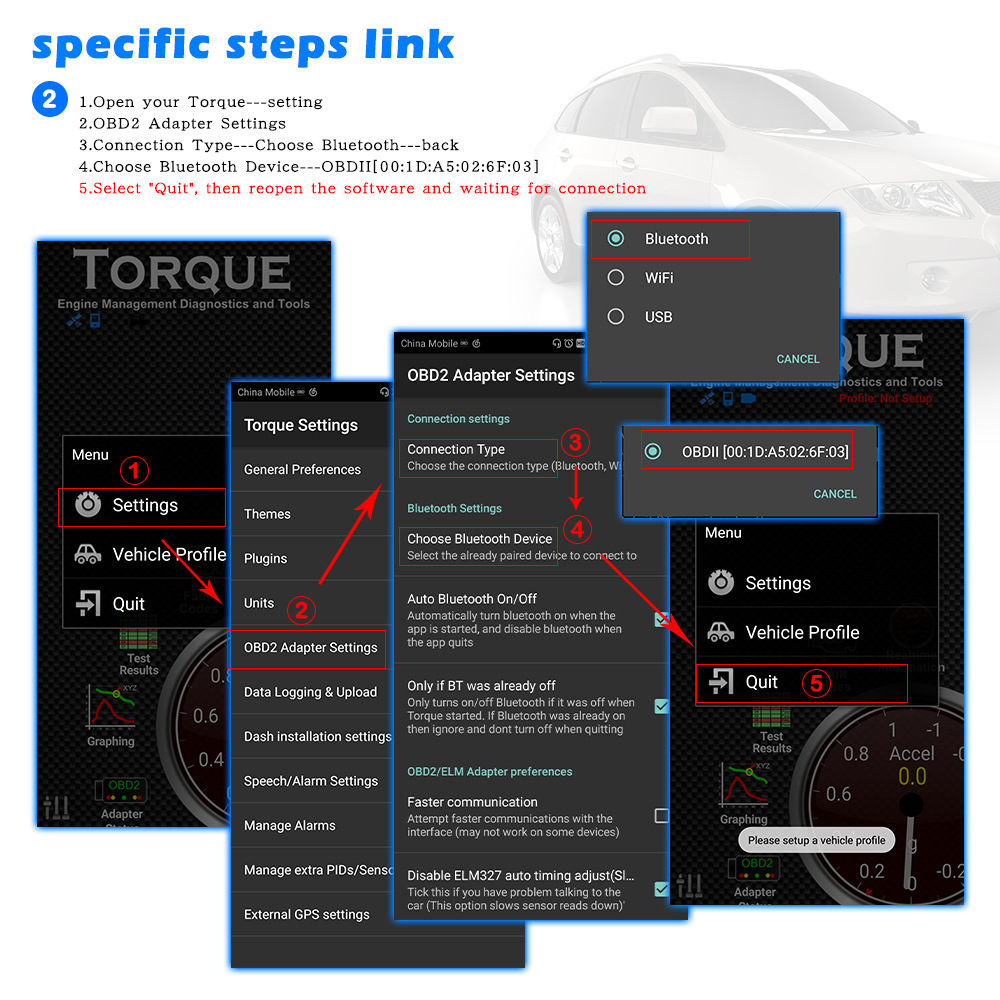

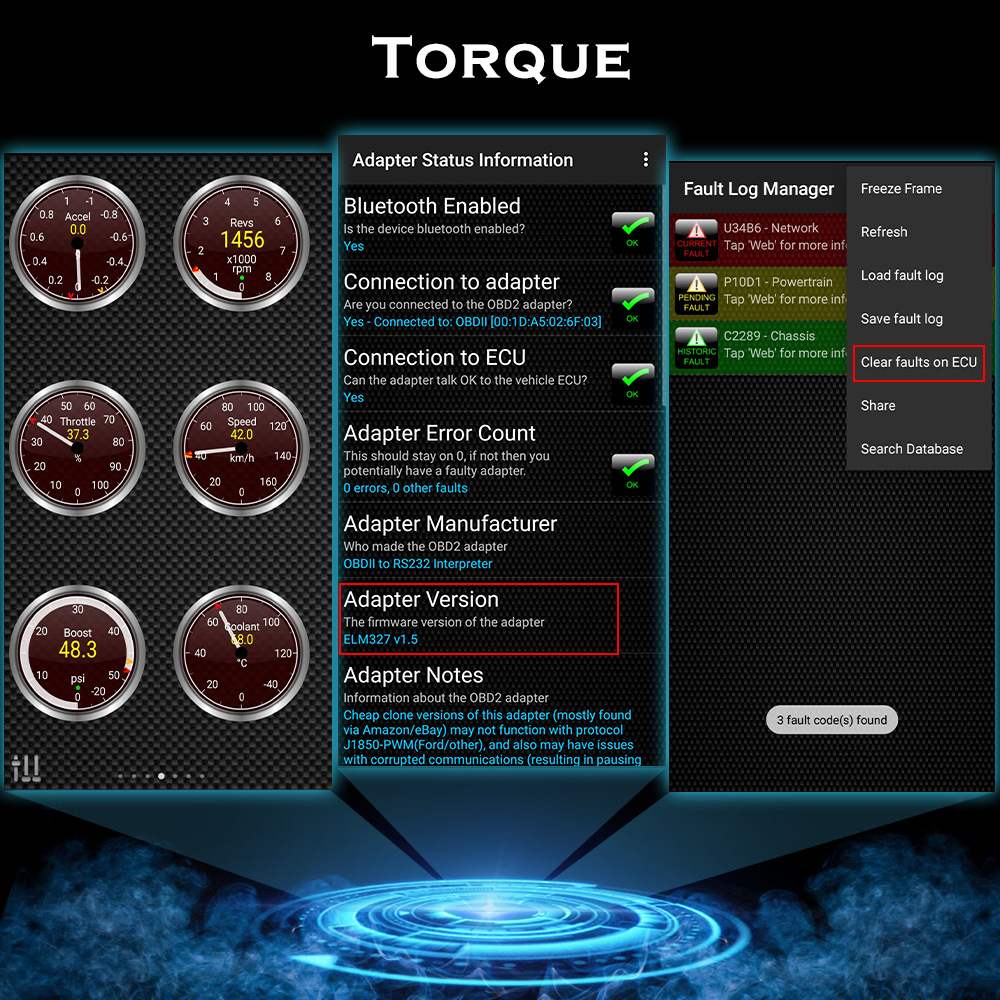

Android : Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.

Symbian : OBDScope

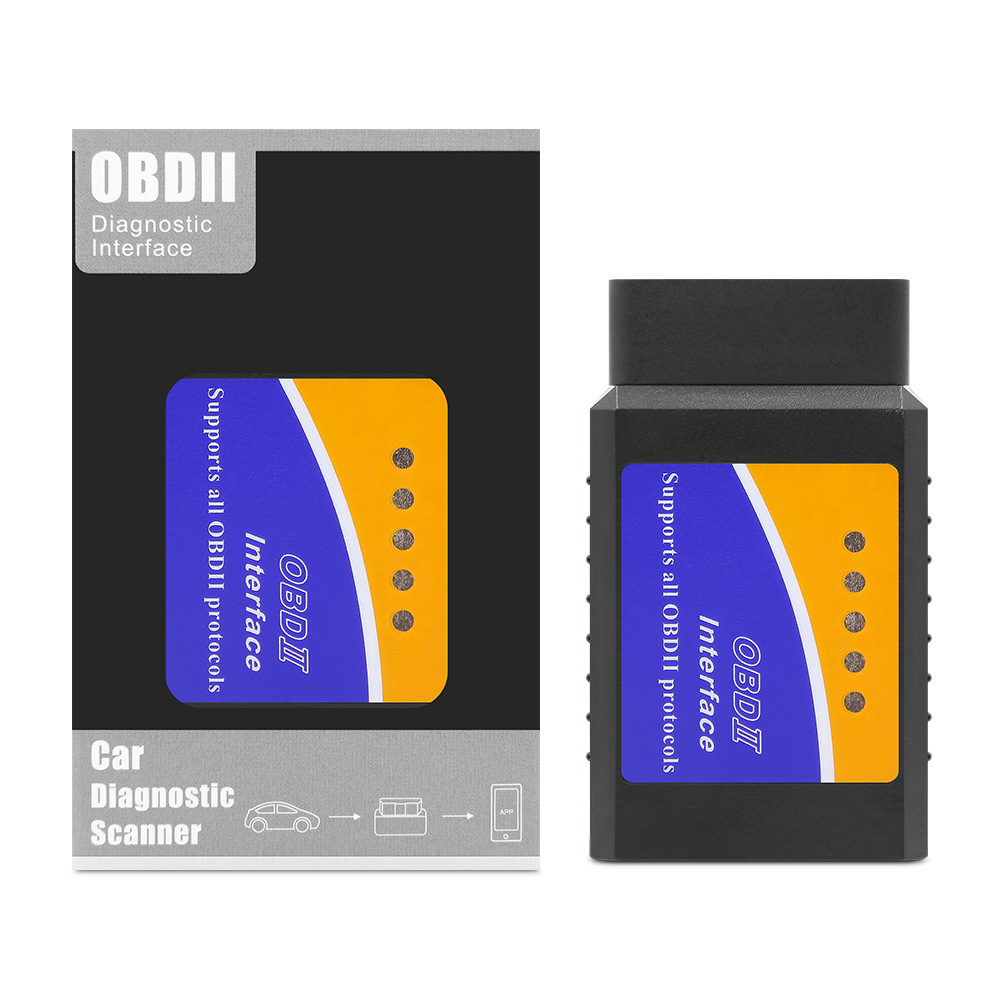

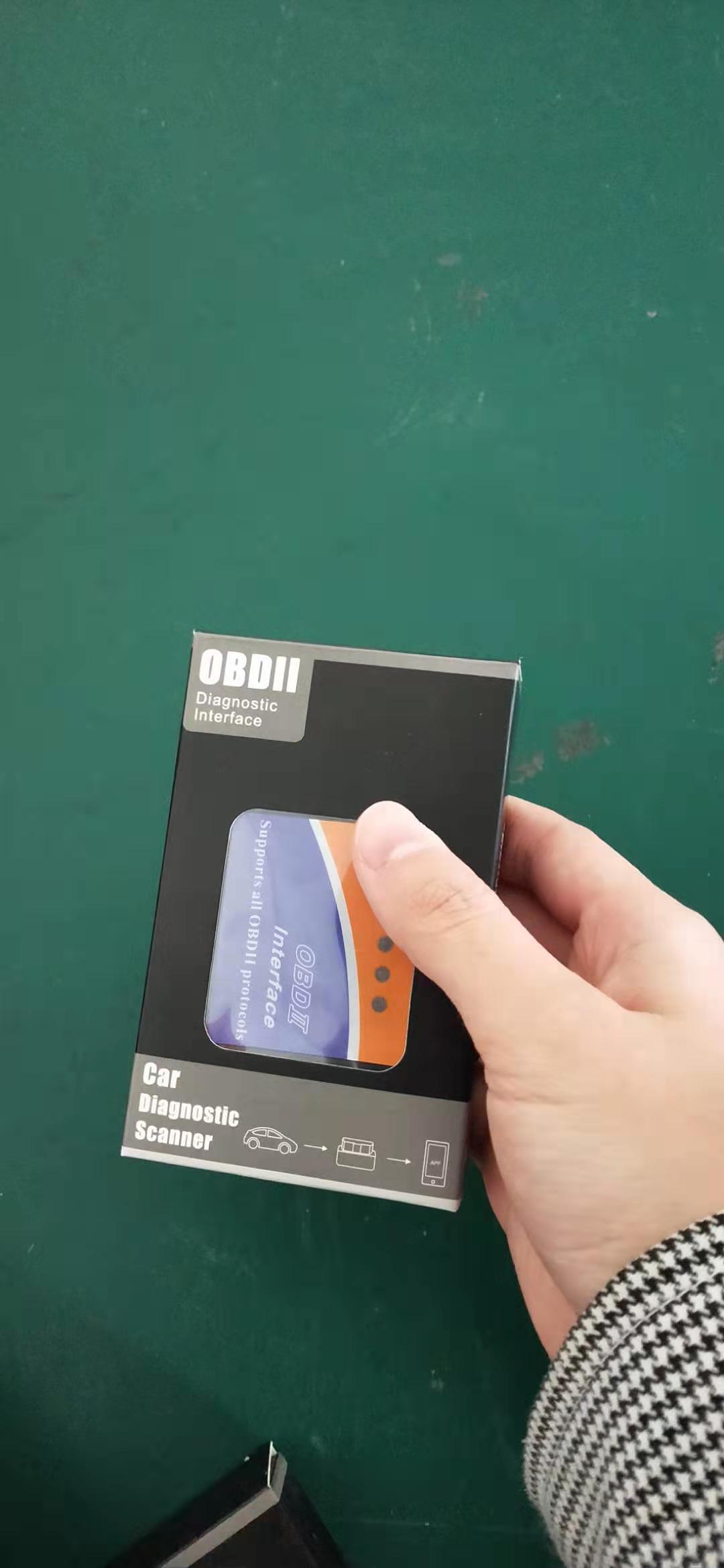

Package List:

1pc x Mini OBD2 Bluetooth 2.0 Scanner

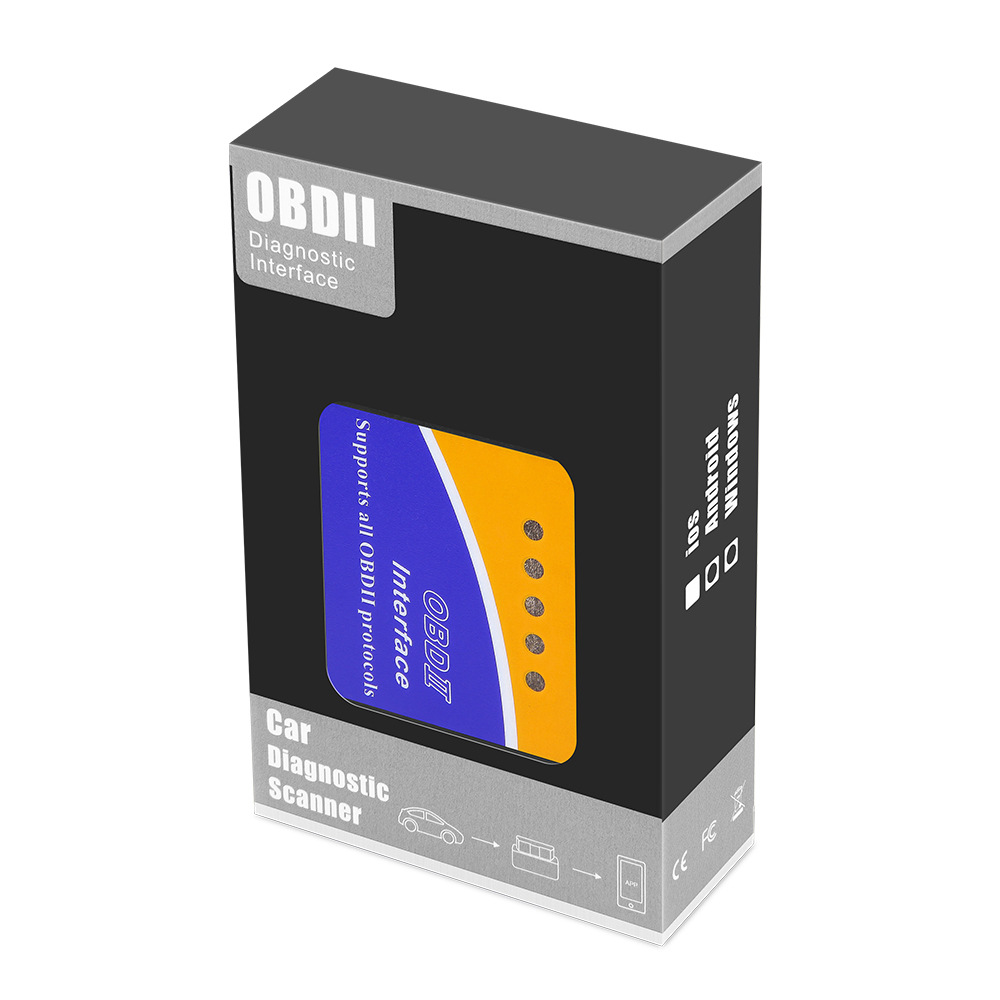

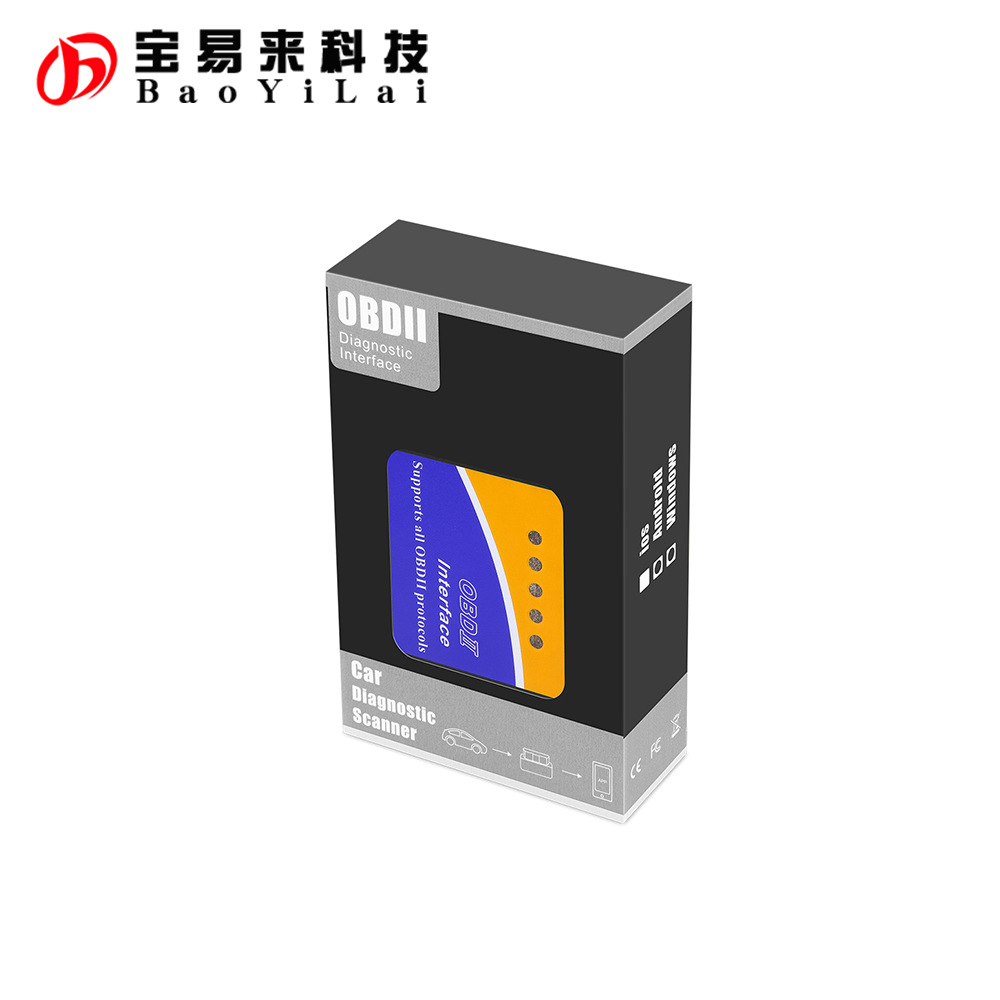

1pc x Box
